Plus
- Reduced environmental impact
- Reduction of the working area
- Minor height of the mast
- Reduction of the noise
- System of mud collecting and canalization
- Enhanced safety in working area
- Semi-automatic sequences in the tubular movement
- Easier rig-up / rig-down sequence
- Enhanced control of hydraulic movement
- Enhanced operator working control
- Lower cost
- Lower cost for moving
- Staff reduction
- Better and constant performance during drilling
Descriptions
| Static hook capacity |
200 METRIC TONS 440 lbs |
| Hoisting power |
1200 hp |
| Max torque |
3600 kg x m (26,000 ft x lb) |
| Top drive rotation(rpm) |
200 rpm |
| Mud pumps power |
n° 2 mud pump - 1000 hp |
| Mud system capacity |
280 m3 |
| Generators power |
2 x 545 Kw |
RIG TECHNICAL SPECIFICATIONS
| RIG GENERAL DATA |
| EHPU Engines |
2 – CAT C18 – 1250 HP |
| System |
Hydraulic-Mechanic y |
| Hook Load |
200 Ton |
| MAST |
| Type |

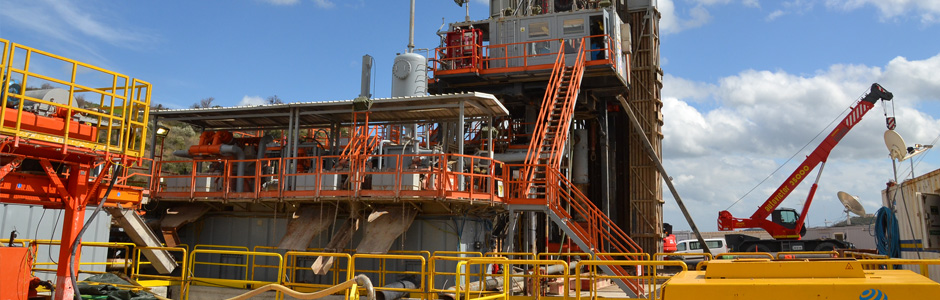

Drillmec HH-200 |
| System |
Hydraulic Hoisting |
| Total height incl. Substructure |
30 m |
| ClearHeight |
16 m |
| Hookload Capacity |
200 Ton (444000 lbs) |
| Racking Capacity DP 5" |
3800 mt |
| SUBSTRUCTURE |
| Type |
Drillmec HH |
| Height of drill floor |
7,60 m |
| Height below rotary table |
7,0 m |
| Load Capacity |
200 Ton (444000 lbs) |
| VERTICAL DRILL PIPE BINS |
| For 5" OD drill pipe |
196 |
| For 3 1/2"" OD drill pipe |
224 |
| POWER GENERATION |
| Engine Type |
2 - Scania DC16 72 A 2-12 |
| Engine Rating |
652kW a 1800 rpm |
| Gen set rating |
700 kVA - 560 kW |
| TOP DRIVE |
| Type |
HTD 200 |
| Load Rating |
200 ton |
| Output Torque |
3525 Nm a 80 rpm |
| Max. RPM |
200 |
| ROTARY TABLE |
| Type |
Drillmec |
| Size: |
27 1/2" |
| Load Capacity |
200 ton |
| RPM and output torque |
60 rpm - 1000 kgm |
| MUD PUMPS |
| Type |
Drillmec 9T1000 |
| Numbers of |
2 (3 optional) |
| Motor |
CAT 3512- 1250 Hp |
| Max pressure |
5000 psi |
| MUD TANK SYSTEM |
| Type |
Rectangular tanks |
| Mud Capacity |
187+100 mc |
| Shale Shaker Type |
Swaco Moonguse PT |
| Desander |
2 x 12" |
| Desilter |
16 x 4" |
| POWER TONG |
| Type |
Drillmec |
| Tubular OD. |
3 1/2" to 11" |
| Make-up Torque |
S17658 daNm |
| Break-out Torque |
17659 daNm |
| BOP SYSTEM |
| Diverter Type |
21 1/4" Shaffer - 2M |
| Annular Type |
13 5/8" Shaffer - 5M |
| Double Rams |
13 5/8" Cemeron Type -10M |
| Single Rams |
13 5/8" Cemeron Type - 10M |
| Choke Manifold type |
MCM - 4 1/16" 10M |
