Plus
- Reduced environmental impact
- Reduction of the working area
- Minor height of the mast in single lenght
- Reduction of the noise
- Lower cost
- Lower cost for moving
- Better and constant performance during drilling & workover
Descriptions

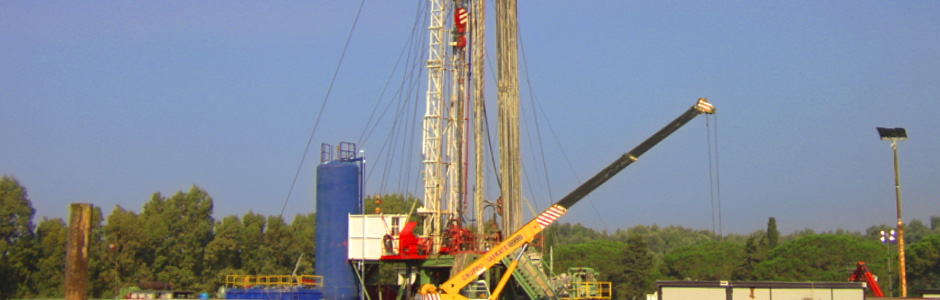

CORSAIR 300 is the perfect rig to perform workover services, & drilling, reducing environmental impact and safety solution. Thanks to the experience on the fields of all Italian and foreign, to a reduced footprint and optimizing loads, today are guaranteed high performance and low cost.
RIG TECHNICAL SPECIFICATIONS
| RIG GENERAL DATA |
| Draw Work |
1 –IVECO 350 HP |
| System |
Mechanic |
| Hook Load |
98 ton (215600 lbs) |
| MAST |
| Type |
CCC- Massarenti API 4E |
| System |
Trailer Mounted |
| Total height incl. Substructure |
33 m Double - 27 m Single |
| ClearHeight |
25 m - 19 m |
| Hookload Capacity |
98 Ton ( 215600 lbs) |
| Racking Capacity DP 5" |
1800 mt |
| SUBSTRUCTURE |
| Type |
CCC-Massarenti- Ballerini |
| Height of drill floor |
4,60 m |
| Height below rotary table |
4,30 m |
| Load Capacity |
160 Ton (242000 lbs) |
| Setback capacity |
60 Ton |
| POWER GENERATION |
| Engine Type |
2 – SCANIA DC12-41A/10-27 |
| Engine Rating |
470 HP |
| Gen set rating |
Arduini SCI 400 KVA |
| TRAVELING BLOCK |
| Type |
Ideco UTD 110-3-24 |
| Load Rating |
110 Ton |
| ROTARY TABLE |
| Type |
GD |
| Size: |
17 1/2" |
| Load Capacity |
110 ton |
| MUD PUMPS |
| Type |
Drillmec 7T450 – GEOASTRA 470 |
| Numbers of |
2 (3 optional) |
| Motor |
CAT C15 – 545 kw |
| Max pressure |
5000 psi |
| MUD TANK SYSTEM |
| Type |
Rectangular tanks |
| Mud Capacity |
120 mc |
| Shale Shaker Type |
Ganmecaniske |
| Desander |
Ganmecaniske 2x10” |
| Desilter |
16 x 3" |
| BOP SYSTEM |
| Diverter Type |
21 1/4" Shaffer - type - 2M |
| Annular Type |
13 5/8" Shaffer -type - 5M |
| Double Rams |
13 5/8" Cemeron - type -5M |
| Single Rams |
13 5/8" Cemeron - type - 5M |
| Choke Manifold type |
MCM - 3 1/8”" 5M |
